msCodeID package

The msCodeID package is responsible for the first semantic stage of the pipeline. It retrieves raw wearable references from InfluxDB, builds per-leg activity segments, and prepares the bilateral structures that are later stored as activity_leg and activity_all in PostgreSQL.

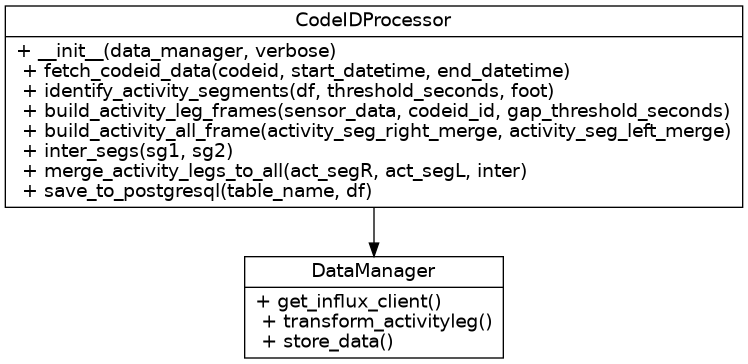

Architecture Overview

CodeIDProcessor and bottom-up semantic construction

Core Components

CodeIDProcessor (msCodeID.codeid_processor)

This class performs the bottom-up construction of semantic activity windows.

Its main responsibilities are:

• retrieving CodeID-level wearable references from InfluxDB

• identifying contiguous activity segments for each foot separately

• building left/right frames compatible with activity_leg

• computing bilateral temporal intersections

• building the merged structure later stored as activity_all

Important public methods include:

• __init__(data_manager: DataManager, verbose: int = 0) -> None

• fetch_codeid_data(codeid: str, start_datetime: datetime, end_datetime: datetime) -> pandas.DataFrame

• identify_activity_segments(df: pandas.DataFrame, threshold_seconds: float = 70, foot: str = "Left") -> pandas.DataFrame

• build_activity_leg_frames(sensor_data: pandas.DataFrame, codeid_id: int, gap_threshold_seconds: float = 80.0) -> tuple[pandas.DataFrame, pandas.DataFrame, pandas.DataFrame, pandas.DataFrame]

• build_activity_all_frame(activity_seg_right_merge: pandas.DataFrame, activity_seg_left_merge: pandas.DataFrame) -> pandas.DataFrame

• inter_segs(sg1: pandas.DataFrame, sg2: pandas.DataFrame) -> pandas.DataFrame

• merge_activity_legs_to_all(act_segR: pandas.DataFrame, act_segL: pandas.DataFrame, inter: pandas.DataFrame) -> pandas.DataFrame

• save_to_postgresql(table_name: str, df: pandas.DataFrame) -> None

Bottom-up semantic construction

The package implements the first semantic layer of the project as follows:

1. Retrieve raw wearable references for one CodeID from InfluxDB.

2. Keep the reference stream needed to delimit activity in time.

3. Split the data by foot (Left / Right).

4. Group rows into contiguous segments according to temporal gaps and device changes.

5. Build left/right semantic frames compatible with activity_leg.

6. Compute bilateral overlaps between left and right activity segments.

7. Merge those overlaps into a bilateral structure compatible with activity_all.

This means the repository now includes the missing bottom-up stage that constructs activity_leg and activity_all before the gait-detection stage starts.

Notes

• Activity segmentation is gap-based.

• Zero-duration segments are filtered out before downstream processing.

• Bilateral activity is built through temporal intersection of left and right leg segments.

• The outputs of this package are later consumed by msGait.

API Reference

CodeID processor

class msCodeID.codeid_processor.CodeIDProcessor(data_manager: DataManager, verbose: int = 0)

Bases: object

Process CodeIDs from raw InfluxDB data into semantic activity frames.

build_activity_all_frame(activity_seg_right_merge: DataFrame, activity_seg_left_merge: DataFrame) → DataFrame

Build activity_all bottom-up from right/left activity_leg frames.

Parameters:

• activity_seg_right_merge (pd.DataFrame) – Right-leg activity_leg-like frame.

• activity_seg_left_merge (pd.DataFrame) – Left-leg activity_leg-like frame.

Returns:

activity_all-like DataFrame ready to be stored.

Return type:

pd.DataFrame

build_activity_leg_frames(sensor_data: DataFrame, codeid_id: int, gap_threshold_seconds: float = 80.0) → tuple[DataFrame, DataFrame, DataFrame, DataFrame]

Build left/right activity_leg frames bottom-up from raw sensor counts.

Parameters:

• sensor_data (pd.DataFrame) – Raw aggregated sensor data for one CodeID.

• codeid_id (int) – Internal PostgreSQL id for the CodeID.

• gap_threshold_seconds (float) – Maximum temporal gap to keep samples inside the same activity segment.

Returns:

• activity_seg_left: raw left-leg segments

• activity_seg_right: raw right-leg segments

• activity_seg_left_merge: left-leg segments prepared for downstream merge

• activity_seg_right_merge: right-leg segments prepared for downstream merge

Return type:

tuple[pd.DataFrame, pd.DataFrame, pd.DataFrame, pd.DataFrame]

fetch_codeid_data(codeid: str, start_datetime: datetime, end_datetime: datetime) → DataFrame

Fetch aggregated sensor-count data for a given CodeID from InfluxDB.

Parameters:

• codeid – Unique CodeID string.

• start_datetime – Start of the time range.

• end_datetime – End of the time range.

Returns:

DataFrame containing the InfluxDB query results.

identify_activity_segments(df: DataFrame, threshold_seconds: float = 70, foot: str = 'Left') → DataFrame

Identify contiguous activity windows based on time gaps.

Parameters:

• df – Raw count DataFrame containing a _time column.

• threshold_seconds – Maximum gap in seconds allowed inside one segment.

• foot – Foot to filter (“Left” or “Right”).

Returns:

DataFrame with columns [time_from, time_until, CodeID, DeviceName, Foot, total_value, mac].

inter_segs(sg1: DataFrame, sg2: DataFrame) → DataFrame

Compute temporal intersections between two sets of segments.

Parameters:

• sg1 – DataFrame of segments for leg 1.

• sg2 – DataFrame of segments for leg 2.

Returns:

DataFrame of overlapping intervals with index references.

merge_activity_legs_to_all(act_segR: DataFrame, act_segL: DataFrame, inter: DataFrame) → DataFrame

Merge left and right leg activity segments into an activity_all frame.

Parameters:

• act_segR – Right-leg segment DataFrame.

• act_segL – Left-leg segment DataFrame.

• inter – DataFrame of bilateral temporal intersections.

Returns:

DataFrame ready to be inserted into the activity_all table.

save_to_postgresql(table_name: str, df: DataFrame) → None

Save a processed DataFrame to PostgreSQL using DataManager.

Parameters:

• table_name – Destination table name.

• df – DataFrame to insert.
